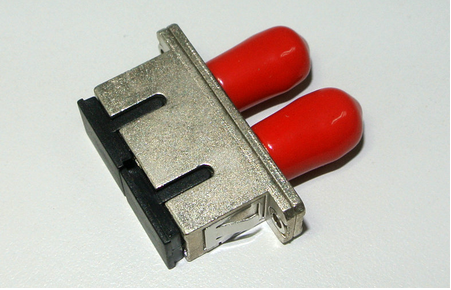

Fiber optic adater SC to ST hybrid adapter DX metal housingwith different color cap

Brand Name : ZGT

Model Number : ZZTAD-SCST2-D-M

Certification : ISO9001,RoHS

Place of Origin : CHINA

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 900K PER MONTH

Delivery Time : 3-5days

Packaging Details : Plastic bag

Product name : fiber optic adapter

Color : Blue /Beige /Green

Type : Single mode/ Multi-mode

Insertion loss : ≤0.2dB

Application : FTTH FTTB FTTX Network

Material : Copper,zinc alloy

Return loss : >55dB

Operating temperature : -40 to +85 degree

Durability : >1000time

Storage temperature : -40℃~+75℃

Housing material : metal or plastic housing

Operating temp : -40 to +85 degree

Warranty : 6 years

Contact Now

Hybrid adaptorYou are here: Home > Products > Fiber Optic Adapter

SC to ST hybrid adapter DX metal housing

Fiber optic adater SC to ST hybrid adapter DX metal housingwith different color cap

Serial Number: ZZTAD-SCST2-D-M

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

Customized design and production.

Parts &Material

Parts	Material	Remarks
Sleeve	Ceramic or PB
Housing	Zinc alloy/Copper
Dust cap	PE	Flammability UL94 V-0

Optical Performance

	Premium Grade	Standard Grade
Insertion Loss	≤0.1dB	≤0.2dB
Durability	1000 times	1000 times

Enviroment and Mechanical

Properties	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40C to +75C, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling
